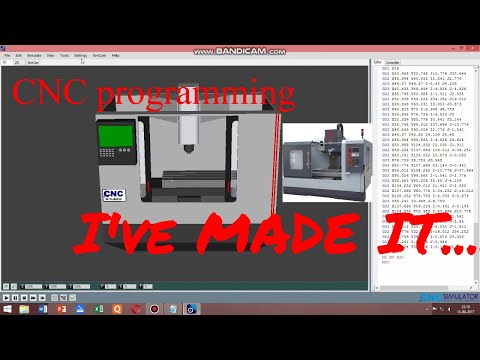

I used CNC simulator pro for simulation
#region
$Millimeters
$Mill
$DefineMillTool “N:” 1 0.00 0.00 0.00 6.35 50.00 0
$DefineMaterial “N:Aluminium” 0 160 160 170 0 0 0 1
$DefineMillWorkpiece “N::M:Aluminium” 0 100.00 100.00 20.00
$AddDefinedPart 0 20 20 0
#endregion
program:
% 10003
DT1 M06
G00 X16.825 Y117.46
G01 Z0 F100 S1000 M03 M08
X123.175
Y111.745
X16.825
Y106.03
X54.621
G03 X50.988 Y104.252 I15.379 J-36.03
G03 X49.574 Y100.315 I1.541 J-2.776
G01 X16.825 Y100.315
Y94.6
X51.315
G02 X49.37 Y90.63 I-6.771 J0.856
G02 X46.389 Y88.885 I-4.826 J4.826
G01 X42.699
G02 X40.435 Y90.006 I1.845 J6.571
G03 X35.748 Y89.012 I-1.911 J-2.535
G03 X35.677 Y88.885 I34.252 J-19.012
G01 X16.825
Y83.17
X33.105
G03 X32.336 Y80.776 I36.895 J-13.17
G03 X33.367 Y77.455 I3.053 J-0.873
G01 X16.825
Y71.74
X40.599
G02 X40.825 Y70 I-6.599 J-1.74
G02 X39.548 Y66.025 I-6.825 J0
G01 X16.825
Y60.31
X32.221
G03 X32.336 Y59.224 I3.168 J-0.213
G03 X33.981 Y54.595 I37.664 J10.776
G01 X16.825 Y54.595
Y48.88
X49.815
G02 X51.228 Y43.165 I-5.271 J-4.336
G01 X16.825
Y37.45
X49.541
G03 X50.988 Y35.748 I2.988 J1.074
G03 X59.224 Y32.336 I19.012 J34.252
G03 X63.241 Y34.948 I0.873 J3.053
G02 X64.111 Y37.45 I6.759 J-0.948
G01 X75.889
G02 X76.759 Y34.948 I-5.889 J-3.45
G03 X80.776 Y32.336 I3.144 J0.441
G03 X89.012 Y35.748 I-10.776 J37.664
G03 X90.459 Y37.45 I-1.541 J2.776
G01 X123.175
Y31.735
X16.825
Y26.02
X123.175
Y20.305
X16.825
G00 Z23
X123.175 Y106.03
G01 Z0
X85.379
G02 X89.012 Y104.252 I-15.379 J-36.03
G02 X90.426 Y100.315 I-1.541 J-2.776
G01 X123.175
Y94.6
X88.685
G03 X93.611 Y88.885 I6.771 J0.856
G01 X97.301
G03 X99.565 Y90.006 I-1.845 J6.571
G02 X104.252 Y89.012 I1.911 J-2.535
G02 X104.323 Y88.885 I-34.252 J-19.012
G01 X123.175
Y83.17
X106.895
G02 X107.664 Y80.776 I-36.895 J-13.17
G02 X106.633 Y77.455 I-3.053 J-0.873
G01 X123.175
Y71.74
X99.401
G03 X100.452 Y66.025 I6.599 J-1.74
G01 X123.175
Y60.31
X107.779
G02 X107.664 Y59.224 I-3.168 J-0.213
G02 X106.019 Y54.595 I-37.664 J10.776
G01 X123.175 Y54.595
Y48.88
X90.185
G03 X88.772 Y43.165 I5.271 J-4.336
G01 X123.175
G00 Z23
X62.937 Y106.03
G01 Z0
X77.063
G03 X76.759 Y105.052 I2.84 J-1.419
G02 X73.776 Y100.315 I-6.759 J0.948
G01 X66.224
G00 Z23
X59.224 Y32.336
G01 Z0
G02 X50.988 Y35.748 I10.776 J37.664
G02 X49.994 Y40.435 I1.541 J2.776
G03 X49.37 Y49.37 I-5.45 J4.109
G03 X40.435 Y49.994 I-4.826 J-4.826
G02 X35.748 Y50.988 I-1.911 J2.535
G02 X32.336 Y59.224 I34.252 J19.012
G02 X34.948 Y63.241 I3.053 J0.873
G03 X40.825 Y70 I-0.948 J6.759
G03 X34.948 Y76.759 I-6.825 J0
G02 X32.336 Y80.776 I0.441 J3.144
G02 X35.748 Y89.012 I37.664 J-10.776
G02 X40.435 Y90.006 I2.776 J-1.541
G03 X49.37 Y90.63 I4.109 J5.45
G03 X49.994 Y99.565 I-4.826 J4.826
G02 X50.988 Y104.252 I2.535 J1.911
G02 X59.224 Y107.664 I19.012 J-34.252
G02 X63.241 Y105.052 I0.873 J-3.053
G03 X76.759 I6.759 J0.948
G02 X80.776 Y107.664 I3.144 J-0.441
G02 X89.012 Y104.252 I-10.776 J-37.664
G02 X90.006 Y99.565 I-1.541 J-2.776
G03 X99.565 Y90.006 I5.45 J-4.109
G02 X104.252 Y89.012 I1.911 J-2.535
G02 X107.664 Y80.776 I-34.252 J-19.012
G02 X105.052 Y76.759 I-3.053 J-0.873
G03 Y63.241 I0.948 J-6.759
G02 X107.664 Y59.224 I-0.441 J-3.144
G02 X104.252 Y50.988 I-37.664 J10.776
G02 X99.565 Y49.994 I-2.776 J1.541
G03 X90.006 Y40.435 I-4.109 J-5.45
G02 X89.012 Y35.748 I-2.535 J-1.911
G02 X80.776 Y32.336 I-19.012 J34.252
G02 X76.759 Y34.948 I-0.873 J3.053
G03 X63.241 I-6.759 J-0.948
G02 X59.224 Y32.336 I-3.144 J0.441
G00 Z60
M5 M9 M20
M30
